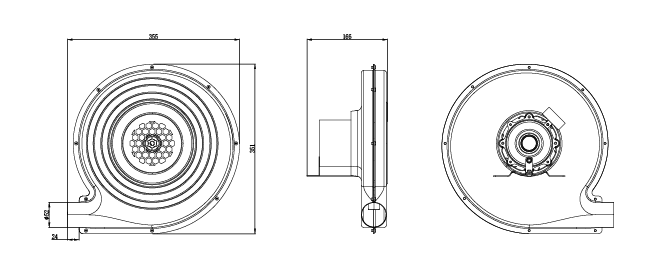

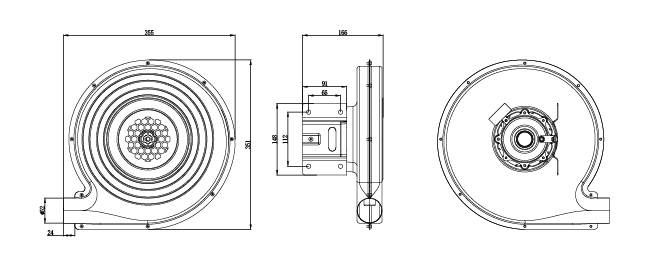

两种安装尺寸
1.输入功率/power：250W           2.电压/voltage：220V
3.转速/speed：2800r/min²       4.风压/pressure：1480Pa
5.风量/air flow：500m³/h          6.噪音/noise：75dB(A)
7.电源线长度/wire length：0.4m

产品特性描述：

      本产品壳体采用优质电解板拉伸而成，

电机全封闭组合，代替传统的铝壳结构

另配独立安装板进行圆周多方位卧式安

装，同时充分利用蜗壳的环凸设计进行

电机固定以及侧隙通风。使用本产品性

价比更高，结构紧凑，自冷良好，安装

方便。适用于各类节能灶、工程灶。

Product characteristics

The shell of this product is stretched from high-quality electrolytic plates, and the motor is fully enclosed, replacing the traditional aluminum shell structure.It is equipped with an independent mounting plate for circumferential multi-directional horizontal installation, and at the same time makes full use of the ring convex design of the volute for Motor fixing and side clearance ventilation. Using this product is more cost-effective, compact structure, good self-cooling, easy to install. It is applicable to all kinds of energy-saving stoves and engineering stoves.
